双频acWiFi模块WG211

当前位置:首页 » 产品展示 » WiFi 模块

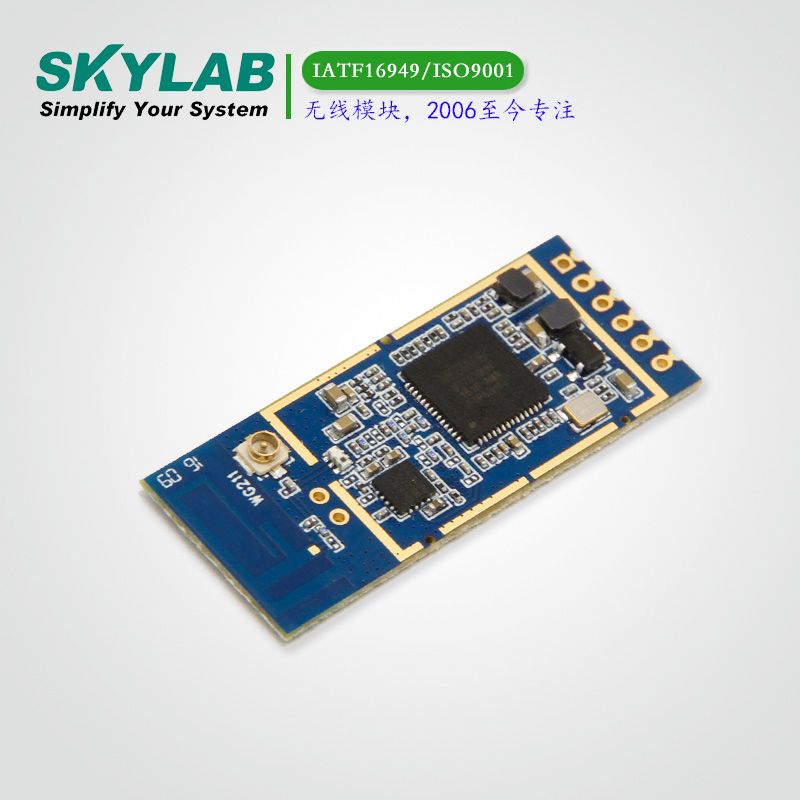

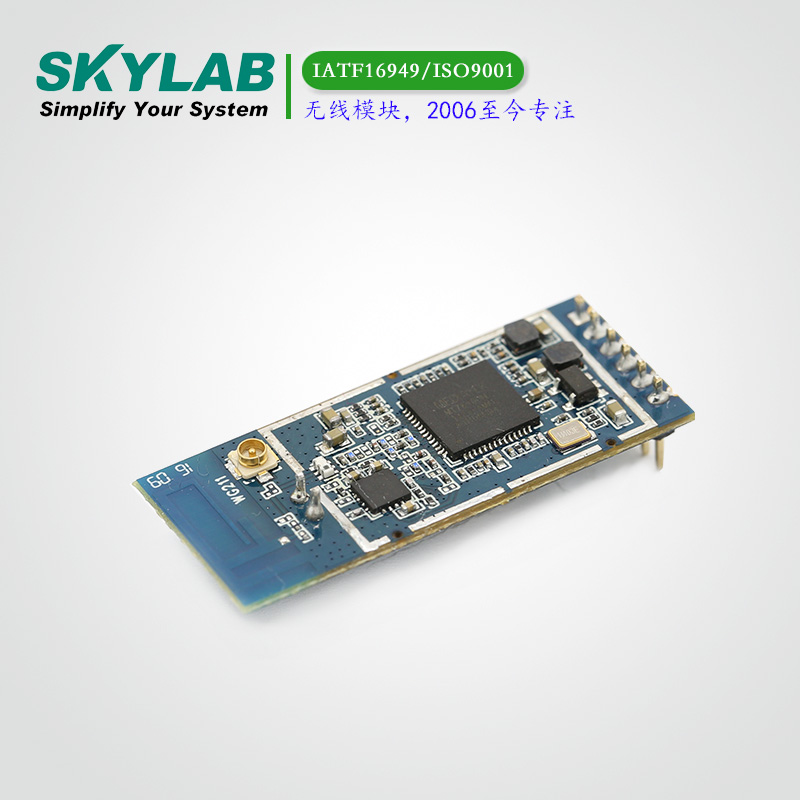

双频acWiFi模块WG211

USB接口,双频acwifi模块
尺寸:36*15*2.8(mm)
浏览次数:2910

产品描述

ac usb双频WiFi模块WG211简介
WG211是一款PHY速率达到433Mbps的高度集成双频(2.4/5G)WiFi模块,它符合IEEE 802.11ac协议,在很远的距离也拥有很好的无线传输性能。
 WG211的设计符合IEEE 802.11a/b/g/n/ac无线标准, 1x1 Wlans,在11b模式下,发射功率为18dBm;在11n模式下,发射功率为15~16dBm;在11ac模式下,发射功率为9~10dBm,传输距离可达150m.可应用于高速wifi高速传输并有USB接口的设备。


特性

Hardware Features

Model

WG211

Antenna Type

IPEX connecter or PCB antenna

Chipset solution

MT7610U

Voltage

3.55.5V

Dimentions (W×D)

36mm*15mm

Wireless Features

Wireless Stanadrds

IEEE 802.11 a/b/g/n/ac

Frequency Range

2.4/5GHz

Data Rates

IEEE 802.11a Standard Mode: 6,9,12,18,24,36,48,54Mbps

IEEE 802.11 b Standard Mode: 1,2,5.5,11Mbps

IEEE 802.11gStandard Mode: 6,9,12,18,24,36,48,54Mbps

IEEE 802.11n/Draft 2.0 Mode: 130Mbps @ HT20

                           150Mbps @ HT40

IEEE 802.11ac Standard Mode: 460Mbps @VHT80

2.4G Receive Sensitivity

HT40 MCS15:  -72dBm@10% PER(MCS7)

HT20 MCS15 : -75dBm@10% PER(MCS7)

             54M: -77dBm@10% PER

             11M:  -90dBm@ 8% PER

5G Receive Sensitivity

VHT80 MCS15:  -62dBm@10% PER(MCS9)

HT40 MCS15:  -71dBm@10% PER(MCS7)

               OFDM54M:   -75dBm@10% PER

               OFDM6M:     -90dBm@ 8% PER

Modulation Technology

802.11 Legacy b/g/n

DSSS (DBPSK, DQPSK, CCK)

OFDM (BPSK, QPSK, 16-QAM, 64-QAM)

802.11ac

OFDM (256-QAM)

Wireless Security

Supports WEP64/128, WPA, WPA2, TKIP, WAPI, and AES hardware encryption

Wireless Transmit Power

With ±2dBm tolerance

IEEE 802.11ac: 9-11dBm @HT80 MCS7

IEEE 802.11n: 12-15dBm @HT40 MCS7

12-15dBm@HT20 MCS7

IEEE 802.11g: 15dBm

IEEE 802.11b: 17dBm

Work Mode

AP/Ad-Hoc / Infrastructure mode

Others

Certification

RoHS

Power Consumption@25°C

Status

POWER

2.4G/mA

5G/mA

Transmission

HT40/MCS 15

5.0V

150

160

Receiving

HT40/MC 15

5.0V

90

90

System Requirements

Windows 7(32/64bits), Windows Vista(32/64bits), Windows XP(32/64bits), Windows 2000,Linux,Android

Environment

Operating Temperature: -10~70 (14~158)

Storage Temperature:-40~125 (-40~257)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing


应用:
    IP Camera
 IP TV
 IP DVD(Internet VOD Player)
 Set Top Box
 Home Gateways
 Gaming Consoles
 DVR
