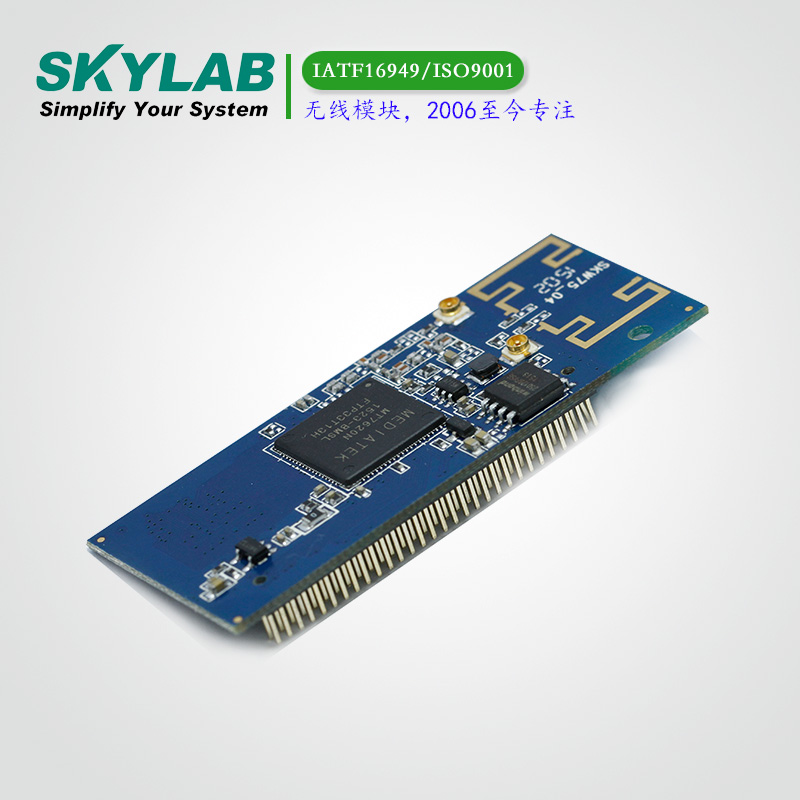

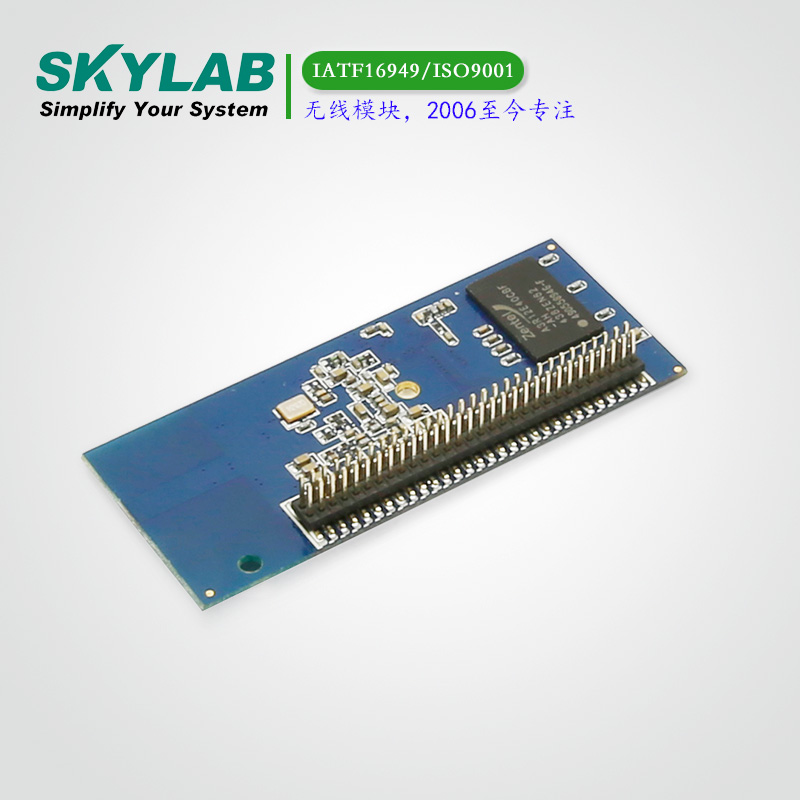

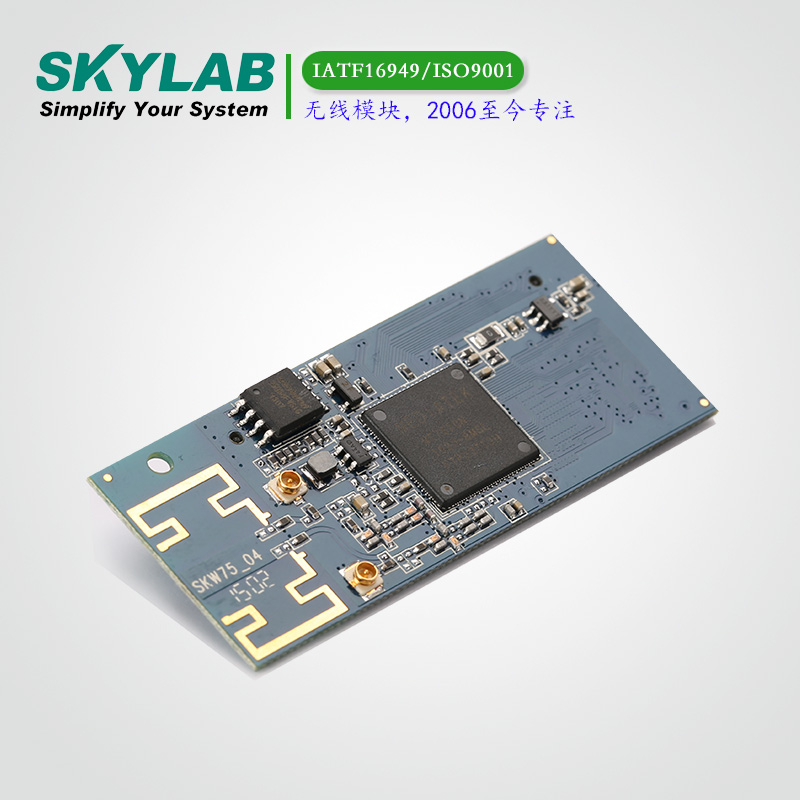

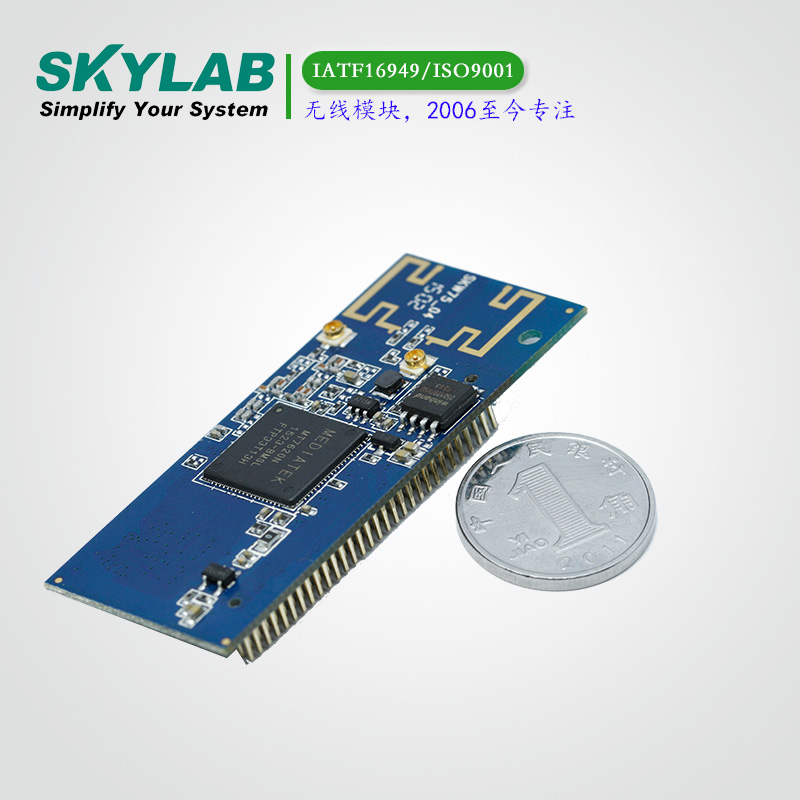

AP/Router WiFi模块SKW75

AP模块,插针,MT7620N
尺寸:55*23*4.8(mm)
浏览次数:5815

产品描述

AP/Router WiFi模块SKW75简介

        SKW75是一款符合802.11 b/g/n Wi-Fi标准的模块,只需外部供电3.3V。它适用于低功耗,低成本,高集成AP的电子设备。

        SKW75的主芯片是MTKMT7620NMT7620N集成了802.11n 2x2 MAC/BB/radio,内部PA 和内部 LNA 802.11n Wi-Fi标准下,20MHz的频宽能达到144Mbps的速率, 40MHZ的频宽能达到300Mbps的速率。
        该模块有3种模式:AP模式,client模式和路由器模式。SKW7560个引脚的插针封装。


技术参数

Hardware Features

Model

SKW75

Antenna Type

IPEX connector or PCB antenna

Chipset solution

MT7620N

Voltage

3.3V+/-10%

Dimentions(W×D)

55mm*23mm

Wireless Features

Wireless Standards

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency Range

2.400GHz---2.4835GHz

Data Rates

IEEE 802.11 b Standard Mode: 1,2,5.5,11Mbps

IEEE 802.11g Standard Mode: 6,9,12,18,24,36,48,54Mbps

IEEE 802.11n :  144Mbps @ HT20

               300Mbps @ HT40

Receiver Sensitivity

HT40 MCS7:   -67dBm@10% PER(MCS7)

HT20 MCS7 :   -73dBm@10% PER(MCS7)

54M:   -76dBm@10% PER

11M:   -91dBm@ 8% PER

Modulation Technique

DSSS (DBPSK, DQPSK, CCK)

OFDM (BPSK, QPSK, 16-QAM, 64-QAM)

Wireless Security

WPA/WPA2, WEP, TKIP, and AES

Transmit Power

IEEE 802.11n:      15dBm @HT40 MCS7

                 15dBm@HT20 MCS7

IEEE 802.11g:      16dBm

IEEE 802.11b:      18dBm

Work Mode

Router/AP/Repeater

Others

Certification

CE, FCC, RoHS

Power Consumption@25°C

Status

Average/mA

Continuous Tx

412

Power Saving

190

Note:The maximum current consumption would be impacted by radiation environment and the driver mechanism

Environment

Operating Temperature: -20~70

Storage Temperature: -40~125

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing


应用
        ◆AP WIFI
        ◆3G/4G wifi router
        ◆Repeater WIFI
        ◆IP TV
        ◆IP DVD(Internet VOD Player)
        ◆Set Top Box
        ◆Home Gateways
        ◆Gaming Consoles
        ◆DVR
