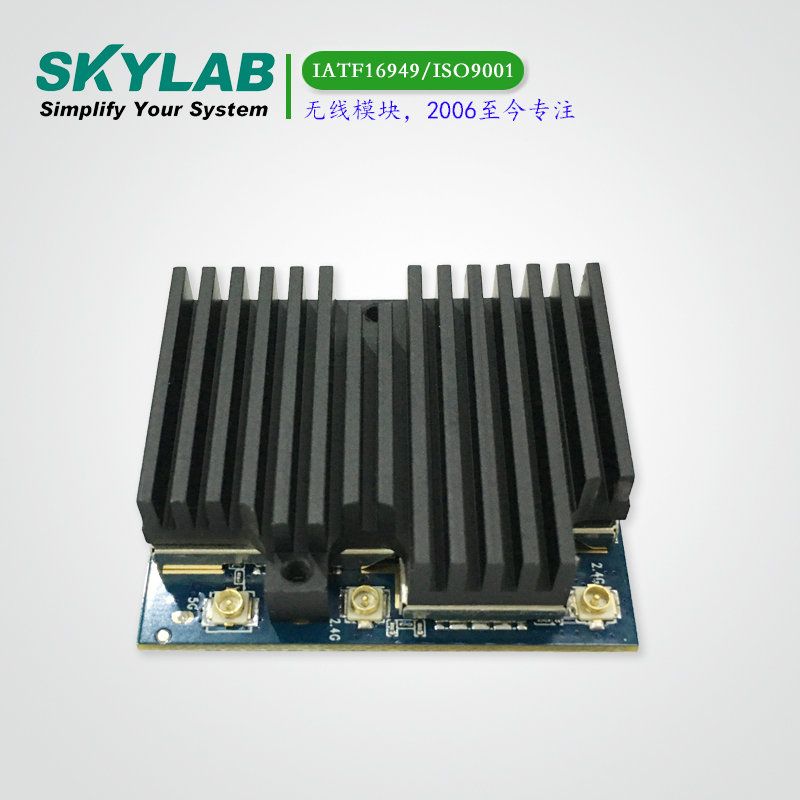

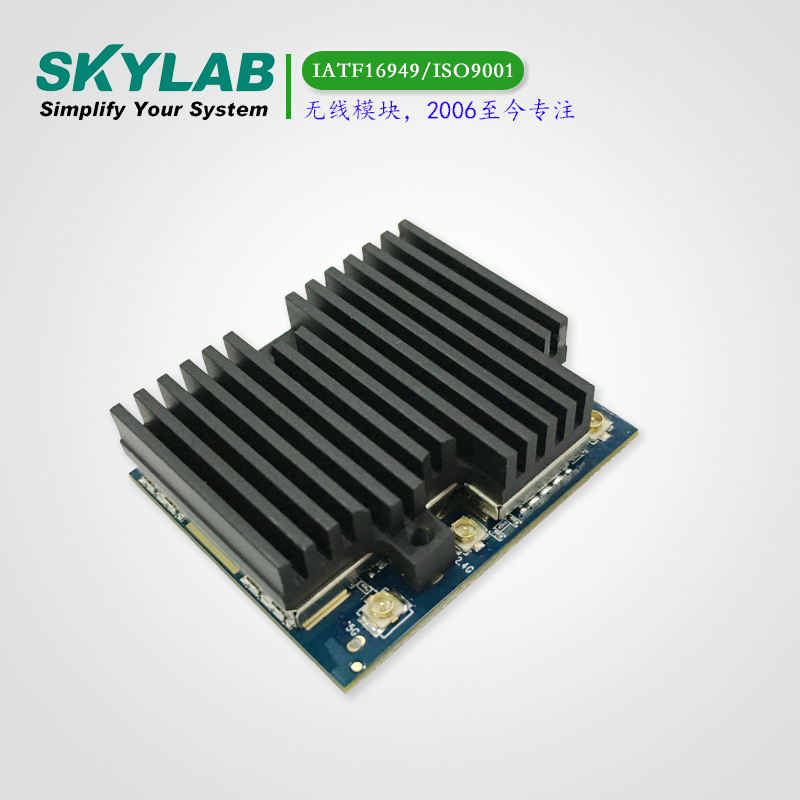

Model

SKW93A

Antenna Type

IPEX

Chipset solution

MT7628A,MT7610E

Voltage

3.3V±5%

Dimension(L×W×H)

36.4 x 30.5x 14.8mm

Wireless Features

Wireless Standards

IEEE 802.11a/b/g/n/ac

Frequency Range

2.412GHz---2.4884GHz   & 5.180---5.825GHz

Data Rates

IEEE 802.11b : 1,2,5.5,11Mbps

IEEE 802.11g : 6,9,12,18,24,36,48,54Mbps

IEEE 802.11n : MCS0--MCS7 @ HT20  /2.4GHz band

         MCS0--MCS7 @ HT40  /2.4GHz band

         MCS0--MCS9  @ HT40  /5GHz band

IEEE 802.11ac :  MCS0--MCS9  @ HT80  /5GHz band

Receiver Sensitivity

HT80 MCS9 :   -60dBm@10% PER(MCS9)  /5GHz band

HT40 MCS9 :   -63dBm@10% PER(MCS9)  /5GHz band

HT40 MCS7 :   -70dBm@10% PER(MCS7)  /2.4GHz band

HT20 MCS7 :   -73dBm@10% PER(MCS7)  /2.4GHz band

54M:   -76dBm@10% PER

11M:   -88dBm@ 8% PER

Modulation Technique

DSSS (DBPSK, DQPSK, CCK)

OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 125-QAM, 256-QAM)

Wireless Security

WPA/WPA2, WEP, TKIP and AES, WPS2.0, WAPI

Transmit Power

IEEE 802.11ac:     13dBm @HT80 MCS9 /5GHz band

IEEE 802.11ac:     16dBm @HT80 MCS0 /5GHz band

IEEE 802.11n:      14dBm @HT20/40 MCS7 /5GHz band

IEEE 802.11n:      16dBm @HT20/40 MCS0 /5GHz band

IEEE 802.11n:      16dBm @HT20/40 MCS7 /2.4GHz band

IEEE 802.11g:      16dBm @54MHz

IEEE 802.11b:      18dBm @11MHz

Work Mode

Bridge/Gateway/AP Client

Others

Certification

RoHS

Environment

Operating Temperature: -20℃~55℃

Storage Temperature: -40℃~125℃

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
