1000MbpsWiFi模块SKW78

当前位置:首页 » 产品展示 » WiFi 模块

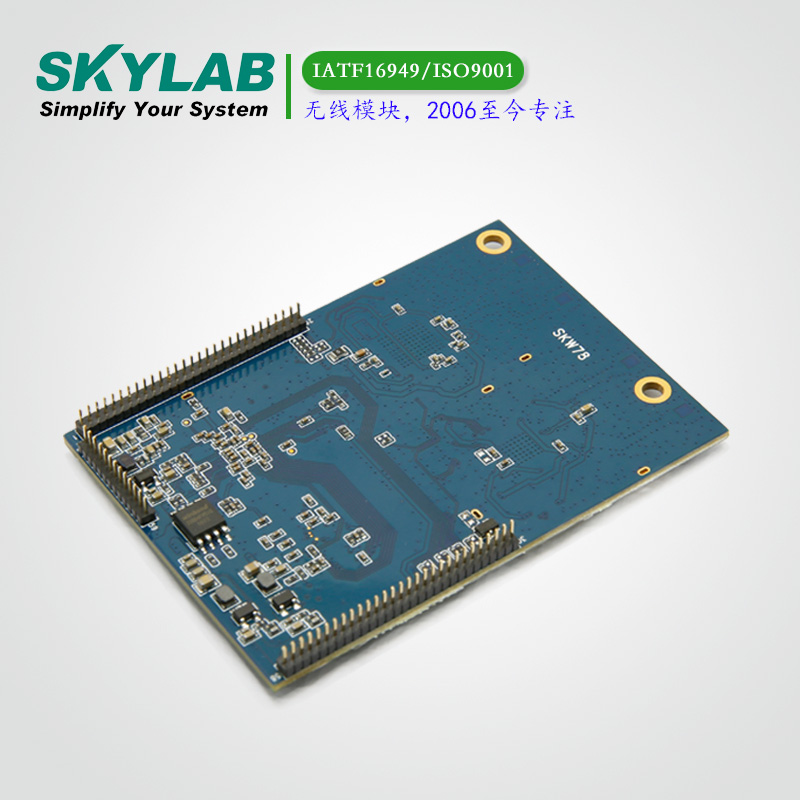

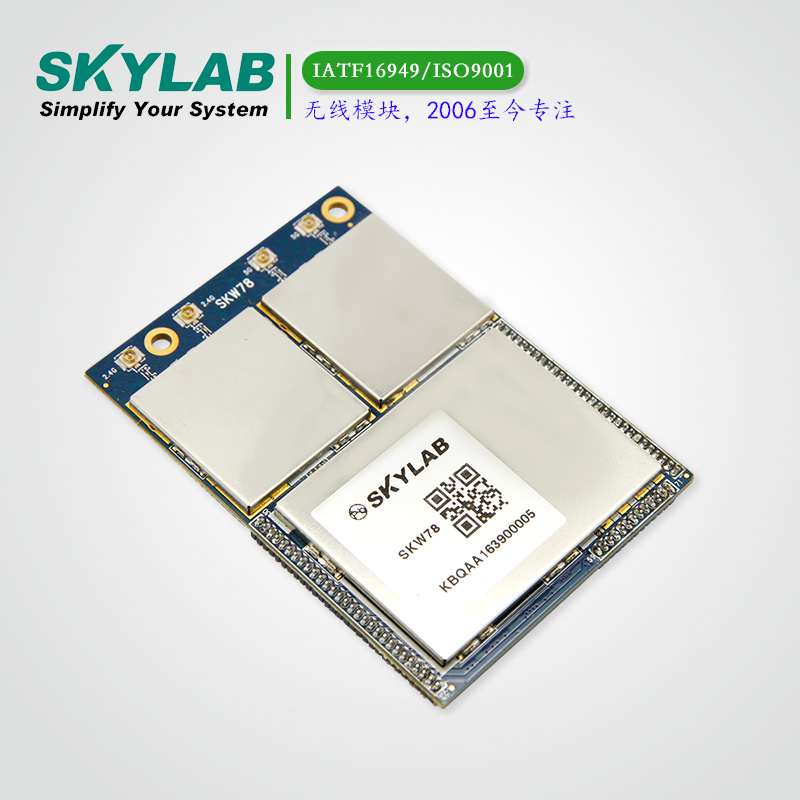

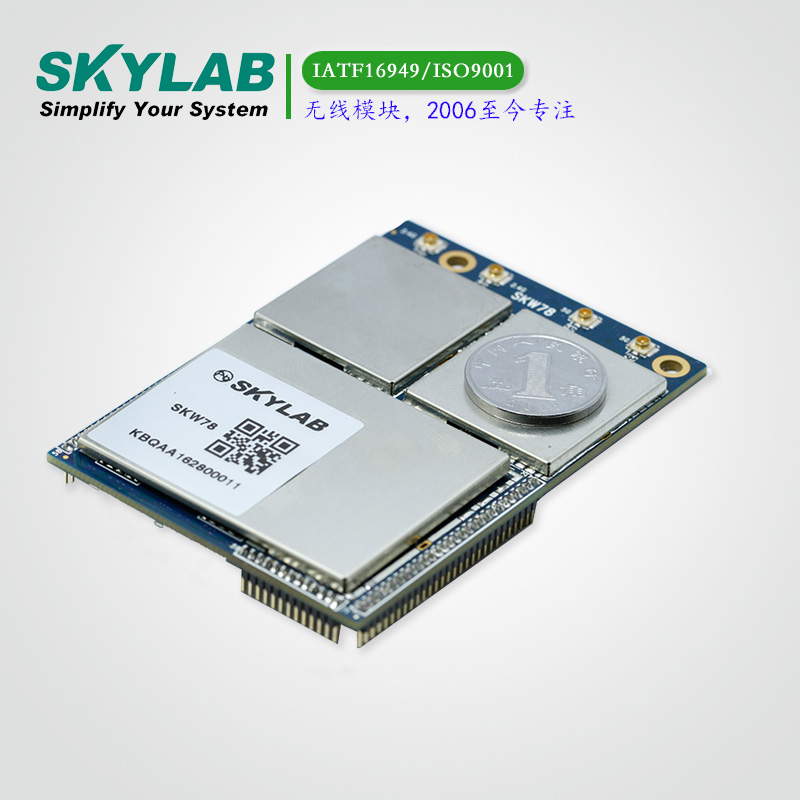

1000MbpsWiFi模块SKW78

千兆wifi,4MIMO
尺寸:75* 52.3* 9.0(mm)
浏览次数:5664

产品描述

千兆网WiFi模块SKW78简介
        SKW78是一款1000Mbps的高速无线路由器模块,该模块符合802.11a/b/g/n/ac Wi-Fi标准,集成3个千兆速度的WAN口或LAN口 ;2xMIMO 2.4GHz 802.11b/g/n WIFI和2xMIMO 5GHz 802.11a/g/n/ac WIFI. 用在客户的电子设备上时,只需要提供一个 3.3V的供电电源即可。
        SKW78内置3个主芯片,一个是集成了1个dual-core MIPS 880MHz, 3-port GbE switch, USB2.0, SD-XC的 MT7621A;另一个是集成了2.4G wlan 802.11n,MAC/radio 和internal PA and LNA的MT7603E;第三个是集成 了5G wlan 802.11ac, MAC/radio 和 internal PA and LNA的MT7612E。
        SKW78在2.4G频段下,20MHz的频宽能达到144Mbps的速率;40MHZ的频宽能达到300Mbps的速率;在5G频段下 ,80MHz的频宽能达到867Mbps的速率.
        SKW78支持AP/Client/Router模式!

特性:
        IEEE 802.11 a/b/g/n and 802.11ac draft compliant
        Dual-band 4T4R mode with data rate up to 1167Mbps
        2.4g 2T2R Mode with support for a 300Mbps TX/RX PHY rate
        5g 2T2R Mode with support for a 867Mbps TX/RX PHY rate
        Support 20MHz, 40MHz, 80MHz bandwidth
        DDR3 memory up to 128Mbx16
        Flash memory up to 64MB
        1LAN ports and 1WAN port with 1000Mbps phy
        Support WAN/LAN/USB/I2C/I2S/SD interfaces
        Support USB 2.0 host device
        Support sd disk
        Support AP/Client/Router mode
        Security: WEP 64/128, WPA, WPA2, TKIP, AES, WAPI
        29-pin x 2 header
        79(L) x 51(W) x 9.0(H) mm small dimension

应用
        AP WIFI
        802.11ac Router
        VPN
        Hotspot
        LTE Cat4/5, edge
        1000Mbps WIFI
        1000Mbps Wan/Lan
        USB Storage Device WIFI
规格

Hardware Features

Model

SKW78

Antenna Type

IPEX

Chipset solution

Voltage

3.3V±5%

Dimension(L×W×H)

75.0 x 52.3 x 9.0mm

Wireless Features

Wireless Standards

IEEE 802.11a/b/g/n/ac

Frequency Range

2.412GHz---2.4884GHz   & 5.180---5.825GHz

Data Rates

IEEE 802.11b : 1,2,5.5,11Mbps

IEEE 802.11g : 6,9,12,18,24,36,48,54Mbps

IEEE 802.11n :  MCS0--MCS7 @ HT20  /2.4GHz band

              MCS0--MCS7 @ HT40  /2.4GHz band

              MCS0--MCS9  @ HT40  /5GHz band

IEEE 802.11ac :  MCS0--MCS9  @ HT80  /5GHz band

Receiver Sensitivity

HT80 MCS9 :   -60dBm@10% PER(MCS9)  /5GHz band

HT40 MCS9 :   -63dBm@10% PER(MCS9)  /5GHz band

HT40 MCS7 :   -70dBm@10% PER(MCS7)  /2.4GHz band

HT20 MCS7 :   -73dBm@10% PER(MCS7)  /2.4GHz band

54M:   -76dBm@10% PER

11M:   -88dBm@ 8% PER

Modulation Technique

DSSS (DBPSK, DQPSK, CCK)

OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 125-QAM, 256-QAM)

Wireless Security

WPA/WPA2, WEP, TKIP and AES, WPS2.0, WAPI

Transmit Power

IEEE 802.11ac:     13dBm @HT80 MCS9 /5GHz band

IEEE 802.11ac:     17dBm @HT80 MCS0 /5GHz band

IEEE 802.11n:      15dBm @HT20/40 MCS7 /5GHz band

IEEE 802.11n:      17dBm @HT20/40 MCS0 /5GHz band

IEEE 802.11n:      16dBm @HT20/40 MCS7 /2.4GHz band

IEEE 802.11g:      16dBm @54MHz

IEEE 802.11b:      18dBm @11MHz

Work Mode

Bridge/Gateway/AP Client

Others

Certification

RoHS

Environment

Operating Temperature: -20~55

Storage Temperature: -40~125

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
